Anthem Integrated 225

-

Overview

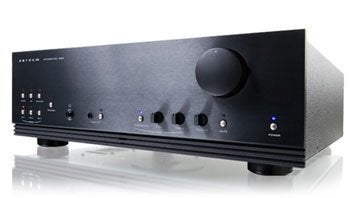

Anthem Integrated 225 Amplifier

Sorry, this product is currently unavailable.

Product Details

Description

SPECIFICATIONS: PHONO PREAMPLIFIER The phono preamplifier is suitable for moving magnet and high-output moving coil cartrIdges. Input Impedance: 47 ko Input Capacitance: 100 pF Maximum Input: 18 mV at 20 Hz, 140 mV at 1 kHz, 160mV at 20 kHz Gain (at 1 kHz): 35 dB Crosstalk (at 1 kHz): 80 dB RIAA Response: +/- 0.5 dB (100 Hz to 20 kHz); -1 dB (20 Hz) THD+N (at 1 kHz, 5 mV input): 0.05% S/N Ratio (ref. 5 mV at 1 kHz, IEC-A filter): 83 dB PREAMPLIFIER Input Impedance: 30 ko 'Pre-Out' Output Impedance: 560 ohms 'Rec-Out' Output Impedance: 100 ohms Rated Input: 1.0 Vrms Maximum Input: 7.6 Vrms Minimum Load: 5 ko Rated Output (100 k1 load): 1.0 Vrms Maximum Output (100 k1 load): 7.6 Vrms Headphone Output: 500 mW into 32 ohms at 0.03% THD+N Channel Separation (at 1 kHz): 75 dB Crosstalk Between Inputs (at 1 kHz): 72 dB XLR Pin Configuration: Pin 1 - Ground; Pin 2 - Positive; Pin 3 - Negative Frequency Response and Bandwidth: 20 Hz to 20 kHz (+0, -0.1 dB); 1 Hz to 170 kHz (+0, -3 dB) THD+N (at rated input and output, 80 kHz BW): 0.003% IMD (CCIF at 15 kHz and 16 kHz): 0.0005% S/N Ratio (A-weighted, ref 2.0 Vrms): 105 dB POWER AMPLIFIER (per channel, continuous RMS, 20 Hz to 20 kHz, <1.0% THD) Width: 14.9 cm including feet Height: 43.8 cm Depth: 45.7 cm Weight (Unpacked): 19.4 kg

Power Requirements 200
Type Amplifier
