Sorry, this product is currently unavailable.

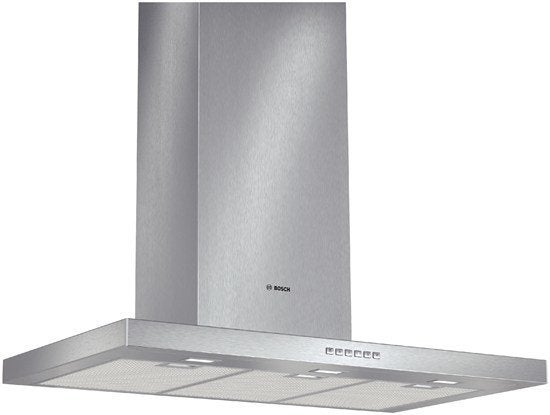

Product Data Box design Wall mount 90 cm Mode and power Energy efficiency class: A + Average energy consumption: 32.5 kWh / year Fan Efficiency: A Lighting Efficiency: A Grease filter efficiency class: C Noise min. / Max. Normal Level: 45/55 dB Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air at operation: Max Normal step:. 55dB (A) re 1 pW (41 dB (A) re 20 uPA sound pressure) Intensive level: 65 dB (A) re 1 pW (51 dB (A) re 20 uPA sound pressure) Optional ducted or recirculating air operation For recirculation mode or an equipment package CleanAir module (optional) is required EcoSilenceDrive 3 power levels and 1 intensive level Fan output air extraction according to EN 61591: max. Normal level 460 m³ / h, intensive level 730 m³ / h Extremely quiet operation due to special noise insulation Comfort Illuminance: 897 lux Color temperature: 3500 K Warm white Workplace lighting with 3 x 3 W power LED modules Electronic control Short-stroke keys illuminated keys Intensive setting with automatic reset Environment and safety Metal grease filter, dishwasher safe Technical information For wall mounting with hobs Quick mounting attachment Power consumption: 139 W Exhaust air duct Ø 150 mm (Ø 120 mm included) Dimensions of exhaust air (HxWxD): 628-954 x 900 x 500 mm Dimensions of circulating air (HxWxD): 628-1064 x 900 x 500 mm Dimensions with CleanAir circulating air module (HxWxD): 689 x 900 x 500 mm - Mounting on outdoor channel 809-1139 x 900 x 500 mm - Mounting on internal channel
