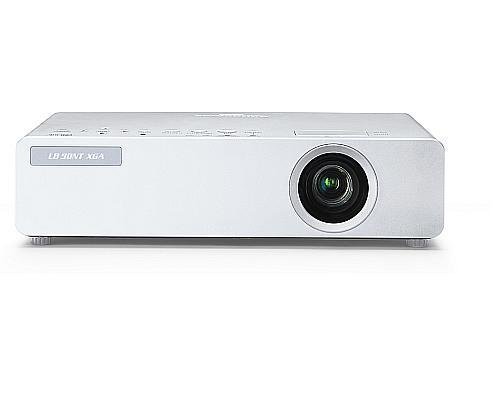

Panasonic PTLB78V



Sorry, this product is currently unavailable.

Product Details


Optical System: Dichroic mirror separation/prism synthesis system LCD Panel: Panel Size: 0.63" (16.00 mm) diagonal, 4:3 aspect ratio Display Method: Transparent LCD panel (x 3, R/G/B) Drive Method: Active matrix Pixels: 786,432 (1,024 x 768) x 3, total of 2,359,296 pixels Pixel Configuration: Stripe Lens: Manual zoom (1:1–1:1.2), manual focus, F 1.65–1.93, f 18.53–22.18 mm Throw Ratio: 1.4 –1.7:1 Lamp: 220 W UHM lamp Projection Size: 33–300 inches/838–7,620 mm diagonally (4:3 aspect ratio) Colours: Full Colour (16,777,216 colours) Brightness: 3,000 lumens Centre-to-Corner Uniformity Ratio: 85% Contrast Ratio: 500:1 (full on/full off) Resolution (RGB): 1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.) Scanning Frequency: RGB: Horizontal: 15–91 kHz, Vertical: 50–85 Hz YPBPR: 480i (525i): fH 15.75 kHz; fv 60 Hz 576i (625i): fH 15.63 kHz; fv 50 Hz 480p (525p): fH 31.50 kHz; fv 60 Hz 576p (625p): fH 31.25 kHz; fv 50 Hz 720/60p (750p): fH 45.00 kHz; fv 60 Hz 720/50p (750p): fH 37.50 kHz; fv 50 Hz 1080/60i (1125i): fH 33.75 kHz; fv 60 Hz 1080/50i (1125i): fH 28.13 kHz; fv 50 Hz S-Video/Video: NTSC, NTSC4.43, PAL-M, PAL60: fH 15.75 kHz; fv 60 Hz PAL, SECAM, PAL-N: fH 15.63 kHz; fv 50 Hz Optical Axis Shift: 5:1 (fixed) Keystone Correction Range: Vertical: approx. ±30° Installation: Front/rear, ceiling/desk (menu selection) Built-In Speakers: Size: 4 x 2 cm x 1, oval Output power: 1.0 W (monaural) Terminals: Computer (RGB) 1 In: D-Sub HD 15-Pin (Female) Computer (RGB) 2 In: D-Sub HD 15-Pin (Female) Video In: RCA Pin S-Video In: Mini DIN 4-Pin Computer (RGB) ½ Audio In: M3 Video/S-Video Audio In: RCA Variable Audio Out: M3 Serial: D-Sub 9-Pin Dimensions (W x H x D): 368 x 88 x 233 mm Weight: Approx. 2.96 kg

Image Brightness Ansi 3000
Type LCD Projector
Max Resolution 1024x768
Contrast Ratio 500
